Not Every Gas Appliance Can Simply Be Connected
When most people think about gas installations, they picture a cooktop, hot water system or commercial kitchen.
Laboratory equipment is different.
Many industrial and laboratory appliances are classified as Type B gas appliances, meaning they require additional engineering, testing and certification before they can be safely commissioned.
That's because these appliances are often larger, more specialised and operate under very different conditions to standard commercial gas equipment.
At this commercial laboratory in Camellia, our team was engaged to install a completely new LPG gas service from a loading bay bottle station to a Type B appliance located inside the laboratory.
The project wasn't simply about running copper pipework through the building.
It was about delivering a gas system that was safe, compliant and designed specifically around the requirements of specialised laboratory equipment.
What Is a Type B Gas Appliance?
One of the first questions clients ask is:
"What actually makes an appliance Type B?"
In Australia, gas appliances generally fall into two categories.
Type A appliances include familiar equipment such as domestic cooktops, water heaters and many standard commercial appliances.
Type B appliances are different.
They include specialised equipment used in laboratories, manufacturing, food processing, industrial heating and research facilities.
Because of their size, heat input or operating characteristics, these appliances require individual assessment and certification before they can be placed into service.
The gas installation therefore becomes part of a much larger compliance process.
Every Commercial Gas Installation Starts with Planning
Before any pipework was installed, our team assessed the proposed location of the LPG bottle station, the route through the building and the operating requirements of the laboratory equipment.
Unlike smaller gas installations, commercial gas systems must be designed around more than simply reaching the appliance.
Questions that need to be answered include:
- Can the gas supply deliver sufficient pressure?
- Is the pipe sizing suitable for the appliance demand?
- Where should isolation valves be located?
- How will the pipework be protected from accidental damage?
- Can future maintenance be carried out safely?
- Does the installation satisfy compliance requirements?
By resolving these questions during the planning stage, the finished installation provides reliable gas delivery while making future servicing much easier.
Building a Dedicated LPG Supply
The new installation began with a purpose-built LPG bottle station positioned within the loading bay.
The cylinders were installed on concrete pads and securely restrained before protective bollards were positioned where required to help shield the installation from accidental vehicle impacts.
Loading bays are busy environments where forklifts, deliveries and equipment movement occur daily.
Providing physical protection around the gas installation is therefore just as important as the pipework itself.

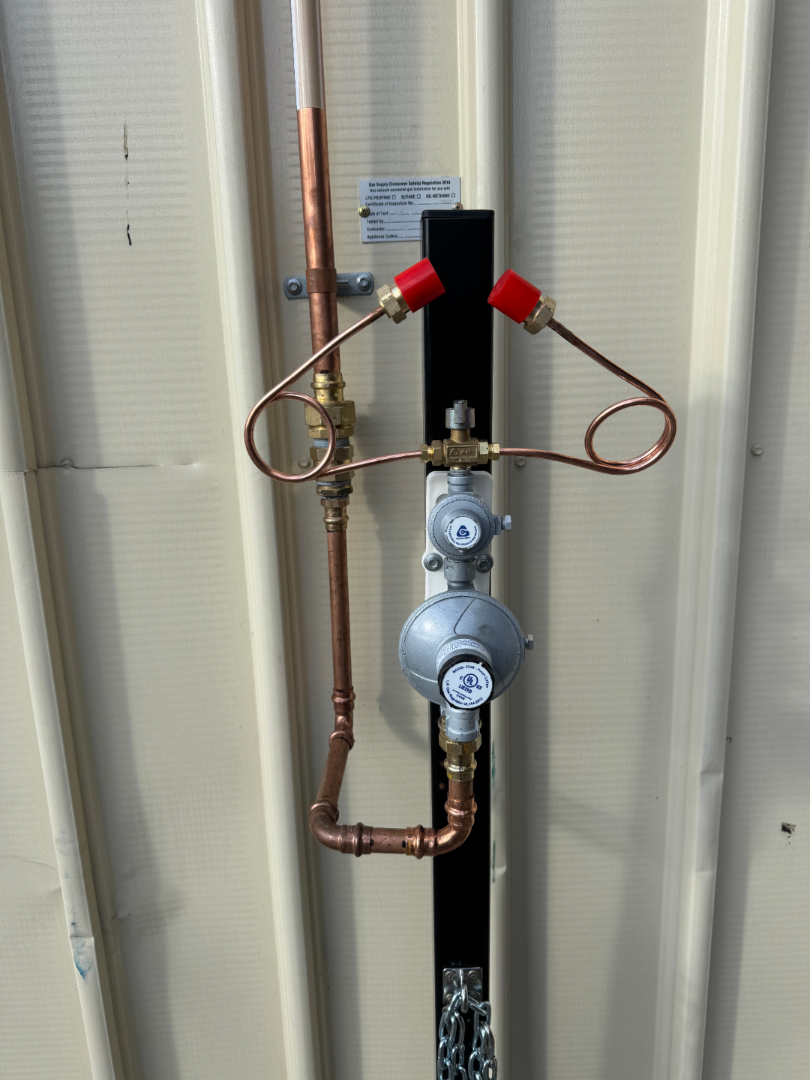

From the bottle station, a dedicated LPG regulator was installed to reduce and control gas pressure before distribution throughout the building.
Why Gas Regulators Matter
An LPG cylinder stores gas at pressures far higher than most appliances can safely use.
The regulator acts as the control point between the storage cylinders and the equipment inside the laboratory.
Rather than allowing pressure to fluctuate as cylinder conditions change, the regulator delivers a stable and controlled gas supply to the downstream pipework.
Without correct regulation, even perfectly installed gas pipework cannot reliably supply specialised laboratory equipment.
Routing Gas Through a Commercial Building
Once the regulator had been installed, new copper gas pipework was routed between the loading bay and the laboratory.
Commercial gas pipework needs to do more than simply reach its destination.
It must also remain protected throughout its service life.
Pipe supports were installed at appropriate intervals to minimise movement and vibration, while wall and brick penetrations were carefully completed to maintain the integrity of the surrounding building.
All newly installed gas pipework was permanently labelled so the service could be easily identified during future maintenance or emergency situations.
Why Isolation Valves Are Essential
A dedicated gas isolation valve was installed immediately before the laboratory appliance.
This allows the individual appliance to be isolated without shutting down the entire gas installation.
That becomes particularly valuable when laboratory equipment requires servicing, maintenance or replacement.
Instead of disrupting the complete LPG system, technicians can safely isolate only the appliance being worked on while leaving the remainder of the installation unaffected.
It's a relatively simple component, but one that significantly improves both safety and operational flexibility.
Testing Comes Before Commissioning
Installing gas pipework is only part of the project.
Before the new LPG service could be placed into operation, the complete installation underwent comprehensive gas pressure and integrity testing.
Pressure testing verifies that:
- Every connection is gas tight.
- The pipework maintains pressure correctly.
- The installation is capable of safely supplying the appliance.
- No leaks are present anywhere within the new system.
Only after the installation successfully passed testing could the commissioning process continue.
Compliance Doesn't End When the Pipework Is Finished
One of the most important parts of this project happened after the installation itself.
Because the laboratory equipment was classified as a Type B appliance, specialist inspection and certification formed part of the overall delivery process.
Our team coordinated with an appropriately qualified Type B gas fitter and certifier to ensure the installation complied with the relevant Australian requirements before the appliance entered service.
For many commercial clients, this coordination removes a significant administrative burden by providing a clear pathway from installation through to certification and compliance documentation.
Commercial Gas Infrastructure Designed for the Long Term
Commercial gas systems are long-term assets.
They need to remain safe, reliable and easy to maintain for many years after installation.
For this laboratory in Camellia, the completed project delivered:
- A dedicated LPG bottle station.
- Regulated gas pressure for reliable appliance performance.
- Professionally installed copper gas pipework.
- Clearly identified gas services.
- Accessible appliance isolation.
- Comprehensive gas testing.
- Type B appliance compliance coordination.
Most importantly, the installation provides the laboratory with a gas supply specifically engineered around its operational requirements rather than adapting a standard commercial gas installation to a specialised application.
